自动鞋抛光机的设计与制造

Abstract:

In this work, it is proposed to design a shoe sole cleaning machine, incorporating shoe polishing facility with this machine. As all the employees, faculty etc required to wear clean shoes before entering their laboratories, as these laboratories have highly précised instruments, sensors etc and the air inside should be very clean.

Thus shoe sole cleaner with shoe polishing machine is designed, considering all the parameters with respect to customer need in terms portability and also economically available to them, thus providing not only clean environment but also provide the style quotient to the person with polishing effect.

介绍

有一个着名的谚语“Cleanliness is next to godliness”。The machine which we have designed and fabricated implicates this, called as “shoe sole cleaner with shoe polishing machine”, here the shoes sole can be cleaned and polished in much less time with no effort.

大多数行业，医院和教育机构拥有最储存的实验室，如计算机实验室，仪器实验室运营剧院和各种生产，化学，制药行业等的装配地点，必须摆脱灰尘和污垢，这将通过鞋子进行员工到工作区，造成不整洁的环境，也有时对工作环境有害。

作为鞋子选择的主要重要性，其维护也在照顾，在一些地区或地区整洁环境是优选的，因此清洁它的鞋子，上下部分以及对人类的优雅外观，抛光鞋是必要的，考虑到各种各样的鞋鞋类清洗机和鞋抛光机的机器已经从前几个世纪而发展，并且该项目引入了各种产品的概念，并有助于选择更好的模型用于鞋底清洁和鞋抛光机。

•鞋子抛光有两种类型的刷子，

1.布里斯尔填充刷子

2.主头发刷

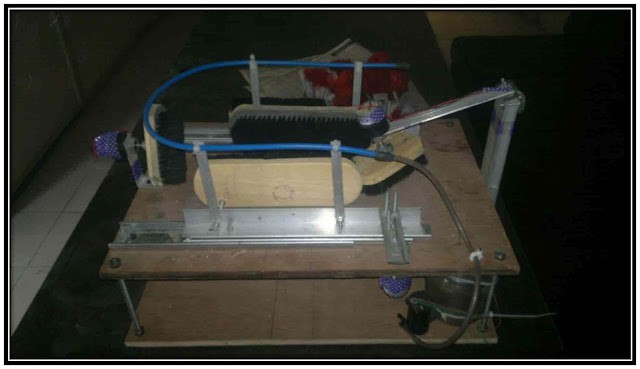

Shoe polish machine consist of two layer of board, the lower board consist of fluid dispensing mechanism and the power supply unit. the upper layer consist of boot polishing and cleaning mechanism. in which consist of four brushes made from nylon material .here, we have used four brushes and we categorized the brushes into,

(1.) Left hand brush

（2.）右手刷

(3.) Front side brush

(4.) Back side brush

机器的工作：

This models basically working on scotch yoke mechanism. in scotch yoke mechanism , the rotary motion is converted into sliding motion. This motion gives controlled path is best for our project. Here one 12v motor is used for power transmitting. This motor is attached with scotch yoke mechanism. It convert the rotary motion into sliding motion. There is one sliding plate is used foe sliding motion which is used in domestic application in home. This sliding plate is attached with scotch yoke mechanism with the help of L-shape aluminum angles. On the back side of this angles the shoe polish brush is attached with the help of screw. For the back and front side ,another 12v dc motor is used for rotating the brushes.

• Now ,when the power is supplied, the first power gone into the step down transformer and 230v power is converted into 12v ac power. From them, it is gone through circuit and the ac power is converted into dc power. This power is supplied to the ON- Off switches which control the motion of motors and pump.

•这里提供了两个开关板，第一开关板由两个开关组成，该开关包括用于控制电刷和第二开关板的两个滑动和两个旋转运动，由一个开关组成，该开关包括用于控制流体流动的一个开关。从两个开关板，SwitchNo-1用于控制刷子的滑动运动，开关NO-2用于控制前侧刷的旋转运动。

• After switching the power supply ,we just need to ON the switches for starting the motor and water pump. The brushes start it work automatically. There is sliding motion of brush create the friction and it will help to get better shining of the shoe.

机器的组件

(1.)12V dc motor with 300 rpm

(2.) 12V transformer

(3.) WATER PUMP

(4.) Circuit for converting ac power into dc power

(5.) Two ON-OFF switch for controlling the sliding and rotary motion of brush

（6.）一个用于控制流体的脱扣开关

(7.)SCOTCH yoke mechanism
